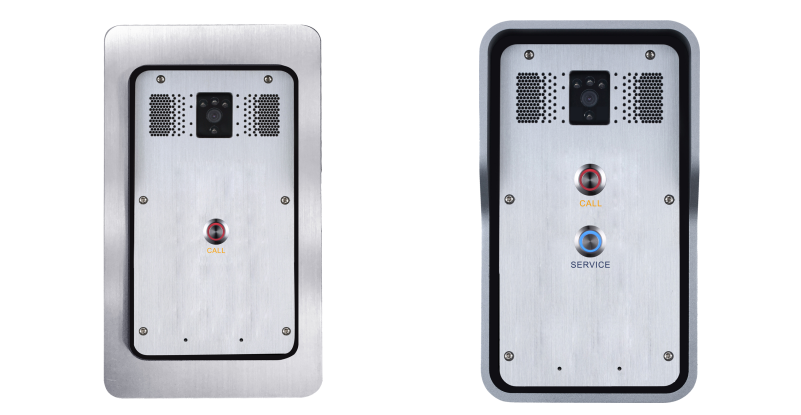

Uniteli DP28 SIP video Intercom, carring Uniteli’s 4+ years industrial experience in technology and product design, Combing IP technology together with industrial intercom perfectly.

UT-DP28 SIP intercom can be easily configured in varies application scenarios like bank, schools, mining, cities, etc.

Feature Highlights

General

• 2 SIP Lines
• PoE Enabled
• Full-duplex speakerphone (HF)
• Intelligent DSS Keys (Speed Dial/intercom etc)
• Integrated Noise Reducation with dual MICs
• Omnidirectional pickup
• 2 embedded short-circuit output relays
• Embedded anti-dismantlement alarm
• External Power Supply
• Record voice and video during calls(optional)
• All in ONE intercom and paging service and Selurity  Linkage
• Wall-mount/In-Wall installation
• Voice/video Intercom
• Speed Dial(speed dial key)
• Auto-Answering (per line)
• Voice Message (on server)
• Barge in and calls switched automatically
• Local 3-way Conference

Fetures

• Wideband CODEC: G.722
• Narrowband CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB, iLBC, AMR
• Full-duplex Acoustic Echo Canceller (AEC) – Hands free Mode, 128ms tail-length
•Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background
Noise Estimation (BNE) / Noise Reduction (NR)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer
• DTMF: In-band, Out of Band (RFC2833) / SIP INFO
• Omnidirectional pickup: pickup distance 5 m
• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP/TR069/SIP PNP

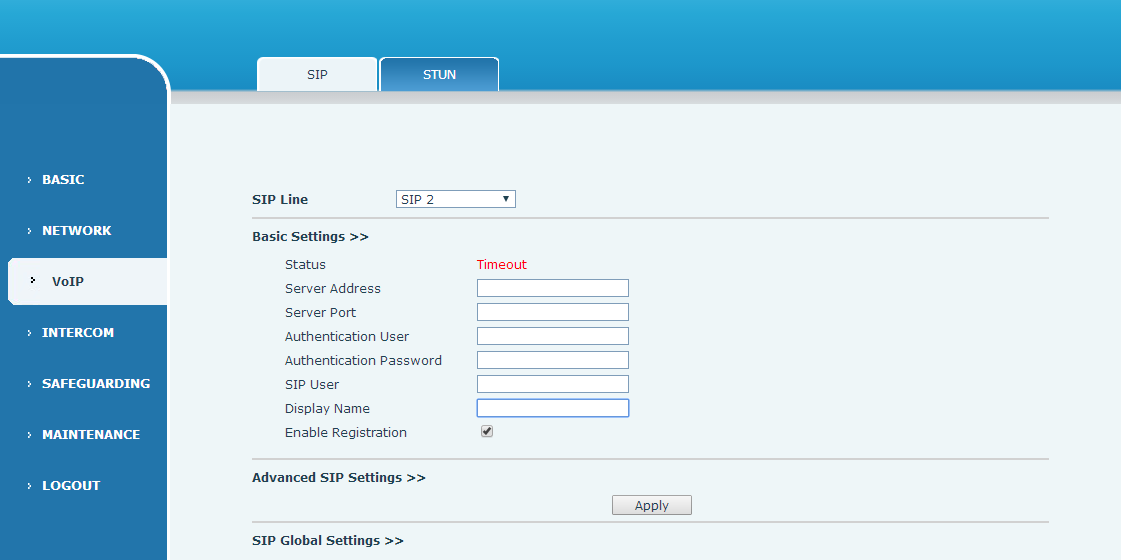

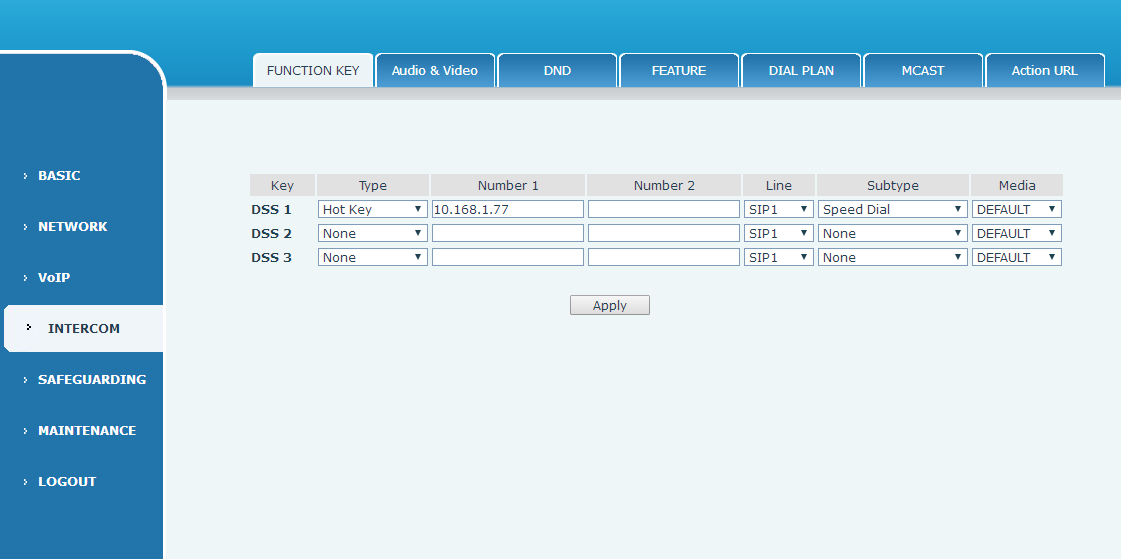

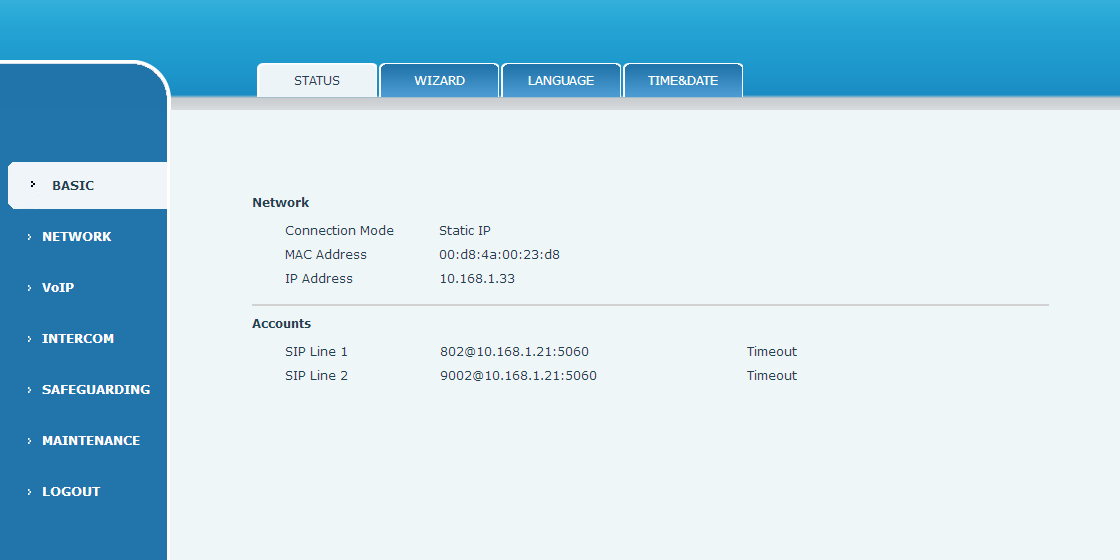

• Web Management Portal
• Web-based Packet Dump
• Configuration Backup/Restore
• Firmware Upgrade

Hardware

• Keypad:1or2 DSS Keys (Speed Dial)
• 1 10/100/1000BASE-T RJ45 Ethernet interface, Auto  MDIX
• PoE: 802.3af,Class 3
• Main Chipset: Freescale quard cores 1GHz CPU
• SDRAM：1GB DDR3
• Flash：4GB
• TF card：embedded 32GB(optional)
• Camera: 1284 x 724, CMOS(1/4inch)
• Passive Switch(short-circuit output): Normally Open and Normally Closed highest
at 30V/1A AC/DC
• View angle:120°(H)109°(V)
• IRNIGHT Vision:yes
• Audio Amplifier: 3W
• Cables: CAT5 or better
• Power Supply：12V±15%/1A DC or PoE
• Shell Material: Aluminum Cover and Cast-Aluminum back case
• Protection level: IP65 and Ik10
• Storage Temperature:-40~70℃
• Working Humidity: 10~90%
• Overall Dimension: 223 x 130 x 74mm (W x H x L)
• Package Weight:1.45KG

UT-DP28

Uniteli DP28 SIP video Intercom, carring Uniteli’s 4+ years industrial experience in technology and product design, Combing IP technology together with industrial intercom perfectly.

UT-DP28 SIP intercom can be easily configured in varies application scenarios like bank, schools, mining, cities, etc.

Feature Highlights

Specification

General

• 2 SIP Lines
• PoE Enabled
• Full-duplex speakerphone (HF)
• Intelligent DSS Keys (Speed Dial/intercom etc)
• Integrated Noise Reducation with dual MICs
• Omnidirectional pickup
• 2 embedded short-circuit output relays
• Embedded anti-dismantlement alarm
• External Power Supply
• Record voice and video during calls(optional)
• All in ONE intercom and paging service and Selurity  Linkage
• Wall-mount/In-Wall installation
• Voice/video Intercom
• Speed Dial(speed dial key)
• Auto-Answering (per line)
• Voice Message (on server)
• Barge in and calls switched automatically
• Local 3-way Conference

Fetures

• Wideband CODEC: G.722
• Narrowband CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB, iLBC, AMR
• Full-duplex Acoustic Echo Canceller (AEC) – Hands free Mode, 128ms tail-length
•Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background
Noise Estimation (BNE) / Noise Reduction (NR)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer
• DTMF: In-band, Out of Band (RFC2833) / SIP INFO
• Omnidirectional pickup: pickup distance 5 m
• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP/TR069/SIP PNP
• Web Management Portal
• Web-based Packet Dump
• Configuration Backup/Restore
• Firmware Upgrade

Hardware

• Keypad:1or2 DSS Keys (Speed Dial)
• 1 10/100/1000BASE-T RJ45 Ethernet interface, Auto  MDIX
• PoE: 802.3af,Class 3
• Main Chipset: Freescale quard cores 1GHz CPU
• SDRAM：1GB DDR3
• Flash：4GB
• TF card：embedded 32GB(optional)
• Camera: 1284 x 724, CMOS(1/4inch)
• Passive Switch(short-circuit output): Normally Open and Normally Closed highest
at 30V/1A AC/DC
• View angle:120°(H)109°(V)
• IRNIGHT Vision:yes
• Audio Amplifier: 3W
• Cables: CAT5 or better
• Power Supply：12V±15%/1A DC or PoE
• Shell Material: Aluminum Cover and Cast-Aluminum back case
• Protection level: IP65 and Ik10
• Storage Temperature:-40~70℃
• Working Humidity: 10~90%
• Overall Dimension: 223 x 130 x 74mm (W x H x L)
• Package Weight:1.45KG
